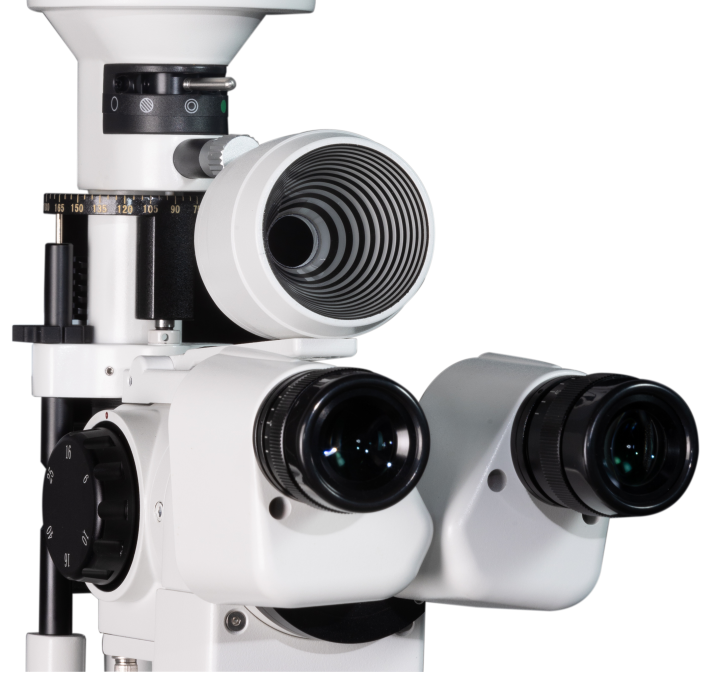

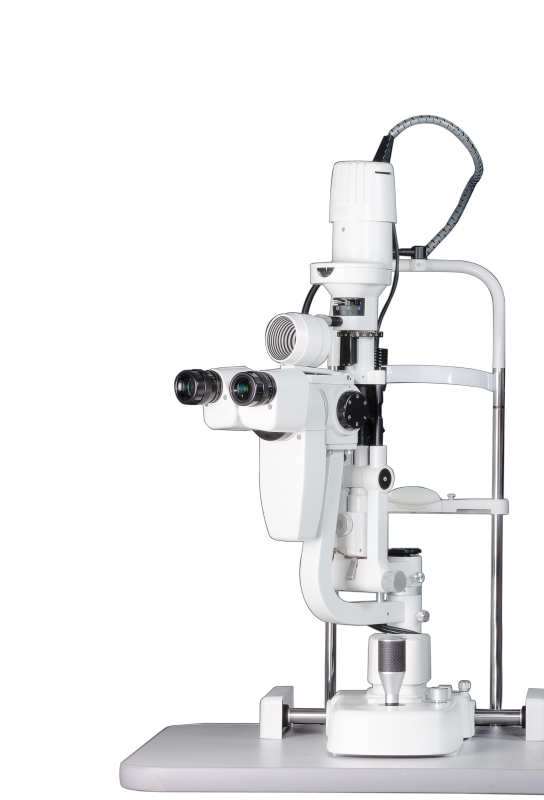

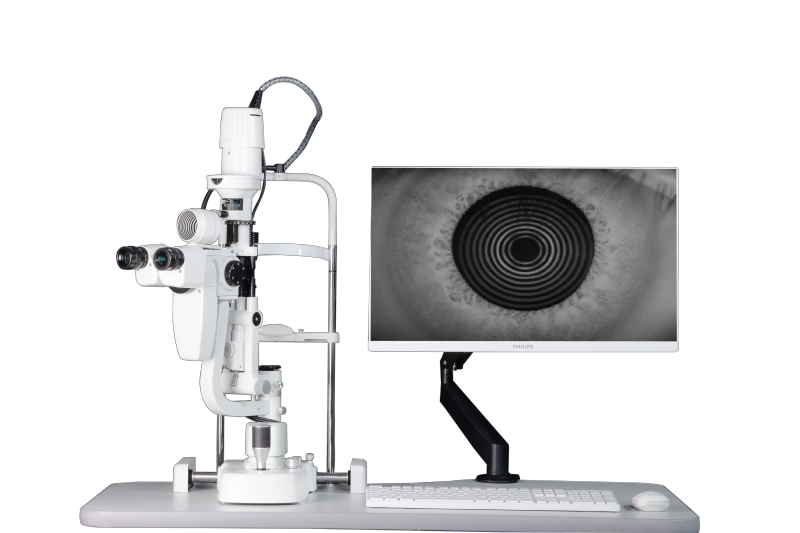

DRY EYE IMAGING SYSTEM

No.
SKU:

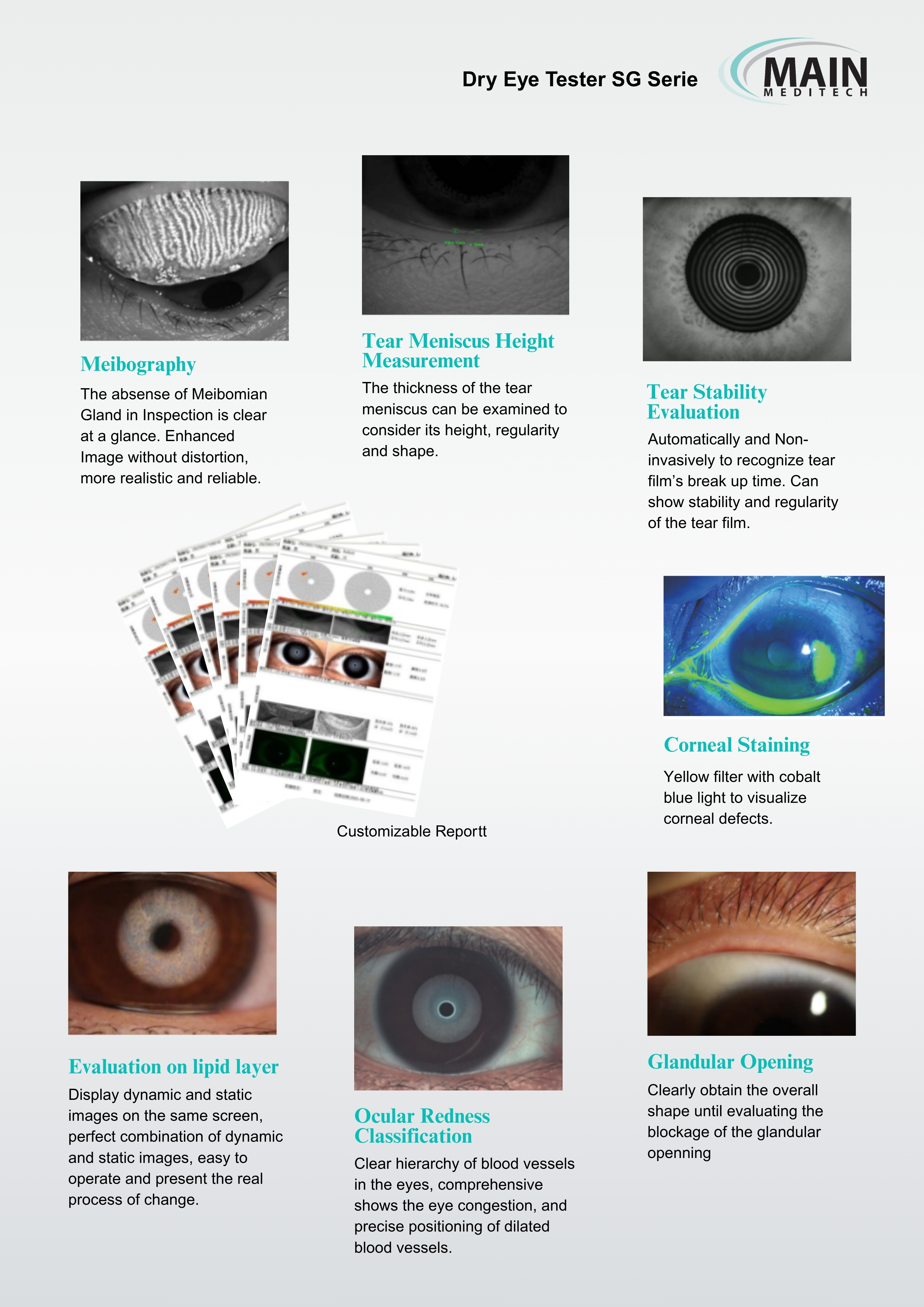

Main Meditech NEW PRODUCT DRY EYE IMAGING SYSTEM features a high-definition CCD acquisition module that delivers unparalleled image clarity, enabling practitioners to identify and assess the severity of dry eye conditions with precision. With this state-of-the-art imaging technology, you can ensure accurate diagnostics, leading to more effective treatment plans for the patients.

Please contact our sales team.
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • DRY EYE IMAGING SYSTEM
Download
  • DESCRIPTION
  • TECHNICAL PARAMETER


Exquisite, high-definition CCD acquisition module

Drum Magnification: 6X,10X, 16X, 25X,40X

Parallel type, Galilean system

Superior optic quality, provides stereoscopic and comfortable view

With broad beam, wild field and high depth of field

Warm LED Illumination, Better Conformity, Longer Life Time

Work 50 thousand hours,and suitable for human tissue.

Precision Machining Makes Smooth and Flexible Movement

Brightness Control Continuously

Interface for laser and applanation tonometer reserved



Information about the Dry Eye Module will be available later.

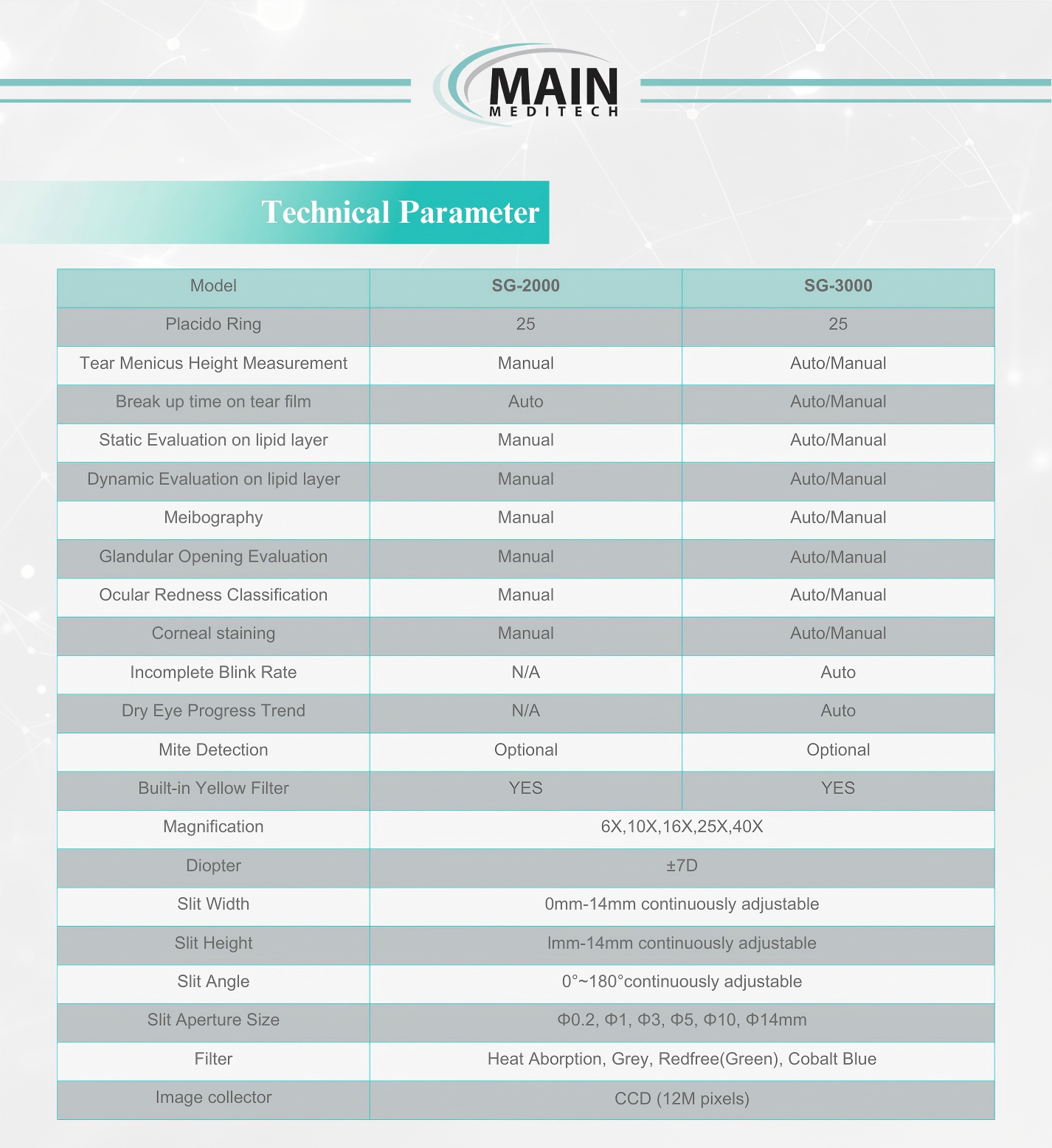

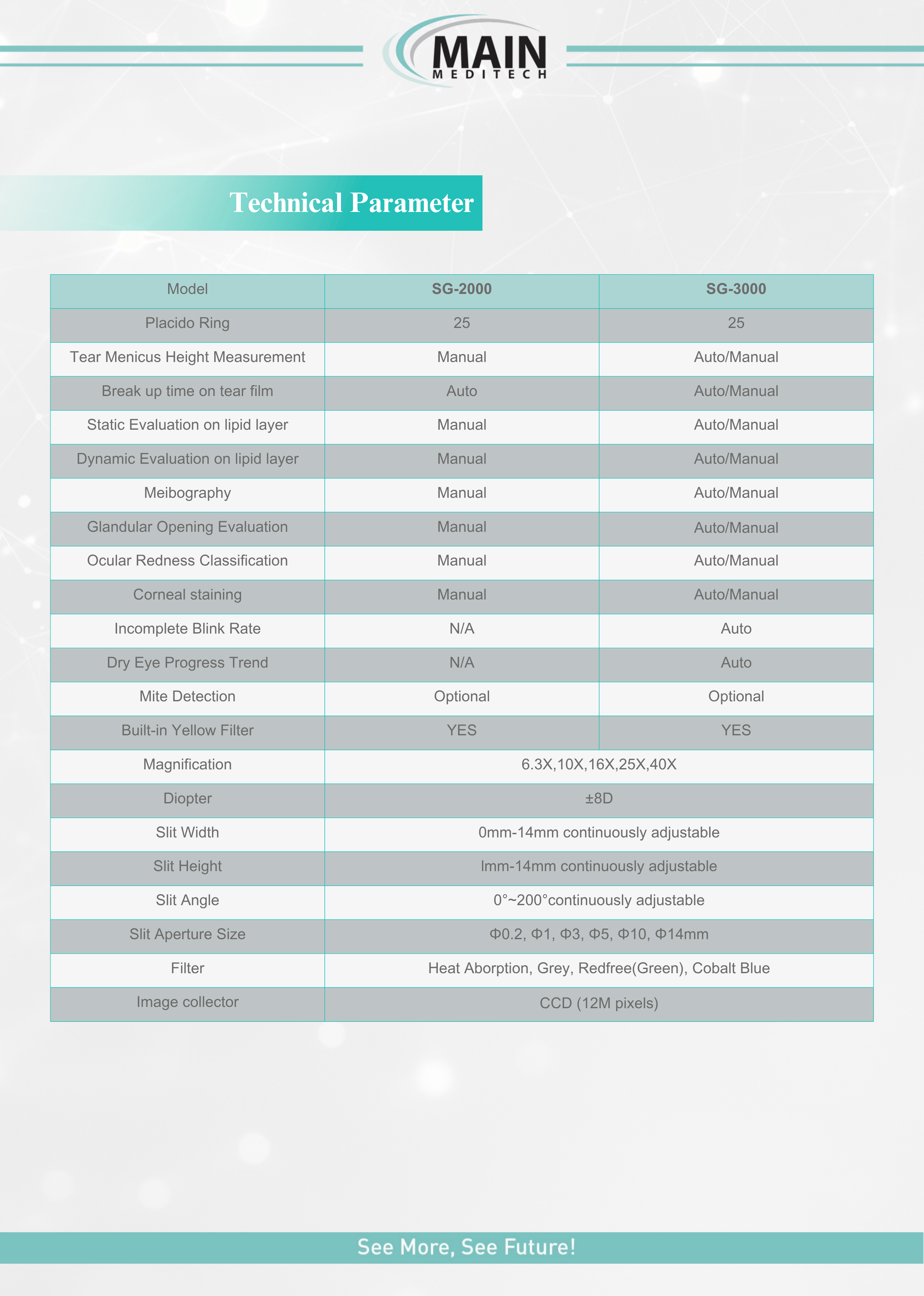

Optical Part
Microscope Type Galilean Type System
Magnification Changer Revolving Drum
Magnification 6X,10X,16X,25X,40X
Eyepiece Magnification 12.5x
Visual Angle of Eyepiece 13°
PD Range 52mm-85mm
Diopter ±7D
Visual Field Diameter 10X(22mm),16X(14mm), 25X(8.5mm)
Illumination Part
Illumination Type Tower Type
Light Source Warm LED
Brightless control Continuously adjustable
Illumination tilting 5°,10°,15°,20°
Slit Width 0mm-14mm continuously adjustable
Slit Height 1mm-14mm continuously adjustable
Slit Angle 0°~180°continuously adjustable
Slit Aperture Size Φ0.2Φ1Φ3Φ5Φ10Φ14mm)
Filter Heat Aborption, Grey, Redfree(Green), Cobalt Blue
* Voltage: 100~240V 48~62Hz Compatible
