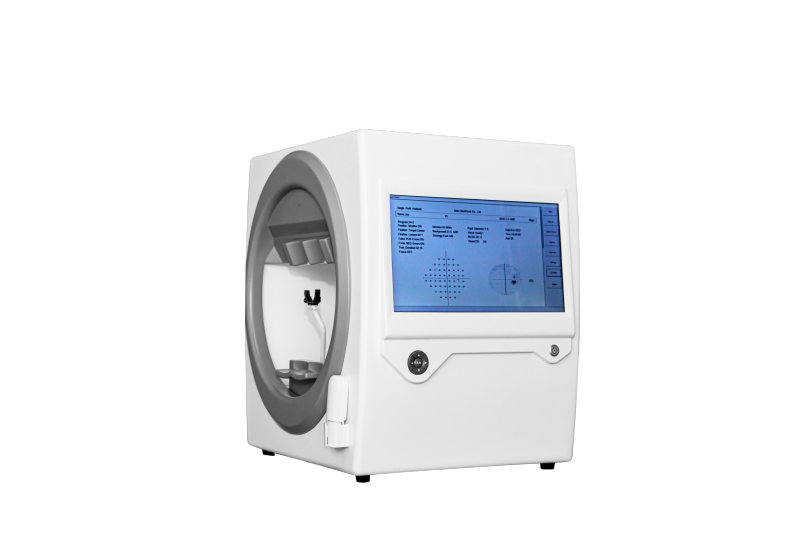

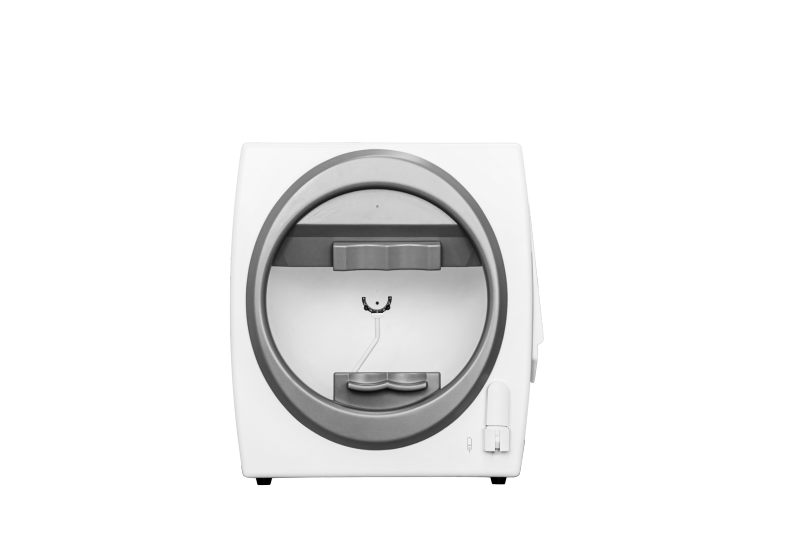

PERIMETER SVF-7000

No.
SKU:
Main MediTech perimeter features white stimulus on a white background light test that provides precise and reliable results, essential for accurate diagnoses. With automatic eye recognition and pupil diameter test,  testing process  streamlined, allowing for improved efficiency.

Please contact our sales team.
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • PERIMETER SVF-7000
  • PERIMETER SVF-7000
Download
  • DESCRIPTION
  • SOFTWARE REPRESENTAT
  • TECHNICAL PARAMETER


Standard Goldmann White-on-White perimeter
Full compliance with the Goldmann standards, White stimulus on white background light test.

LED Light Source
As Goldmann standard perimeter’s trend in market, adopt LED light source for perimeter configuration which is life time long, light declination is very low.During the usage, no need to calibrate the LED bulbs periodically or replace it.

Auto Eye and Pupil Diameter Recognition
System recognize OD/OS automatically and alarm to indicate operator,which is helpful to avoid mistake during test.
Auto pupil diameter measured during test for correcting visual error.

Humanized Design of Mechanical and Structure
Neat wiring and exquisite inside.
Each modules can be replaced easily.

Voice Guidance
Instruct examinee how to cooperate and indicate examinee during whole test by voice guidance.

Dicom Available
Data operation for patient information uploading and downloading.





















*Blind Zone Test

Uniquely developed Blind Zone Test program, which have significant meaning for judgement of optic disk inflammation and edema.

*Driver test of Horizontal 150°

Besides of Esterman Test program, another special Horizontal 150°program is for testing driver who have visual impairment of single eye.

*Test programs application for Neurological eye disease

*Professional test program for Seafares




















* Efficient Test strategies = Reduce Test time + Accuracy

The test strategies fully consider different age groups, responsiveness, visual field defects regularity, and the distribution of the field island,
provides faster solution for perimetry testing which is Smart, Intelligent and interactive.

















* Multiple Fixation Monitoring system

Trace the reliability of test result
























* Classic Test report
Test report in Classic format, can be easily read and understand by doctors world widely.

Monocular Report Bincocular Report



Model Parameter




SVF-7000 Basic


SVF-7000 Pro

DB Value Range displayed

0~40db

Stimulus Intensity Range

1asb~10000asb

Stimulus Size

Goldmann III

Stimulus Color

White

Stimulus Duration Time

200ms/ Adaptive

Max Measurement range

90°

Test Distance

30cm

Test Mode

Static

Stimulus quantity

456 points

Stimulus Plane

Aspherical surface

Background Illumination

White 31.5 asb ( 10cd/m2 )

Voice Guidance function

/

Fixation Deviation Alarm

/

Customize test program

/

Auto OD/OS recognition

/

Blindzone test program

/

Stimulus Source

LED

Chinrest Control

Touch Screen,Keyboard and mouse control,Button control

Head Movement

Chinrest and forehead-rest move simultaneously



PC Configuration



CPU:Intel® Processor N100 (6M Cache, up to 3.40 GHz); RAM:4GB; Hara Disk:120GB;
Operation system: Windows 10;
LCD:14 " Capacitive Touch screen;
Networking: Ethernet & WIFI;



Dimension

480mm(L)*430mm(W)*528mm(H), 14 kgs

Packaging

550mm(L)*480mm(W)*640mm(H), 21 kgs

Others

Input Voltage: AC 100 - 240V,50 ~ 60Hz
