Main MediTech perimeter features white stimulus on a white background light test that provides precise and reliable results, essential for accurate diagnoses. With automatic eye recognition and pupil diameter test, testing process streamlined, allowing for improved efficiency. Perimeter SVF-9000 Pro Specializes Glaucoma testing mode, Blue-On-Yellow Test(SWAP).

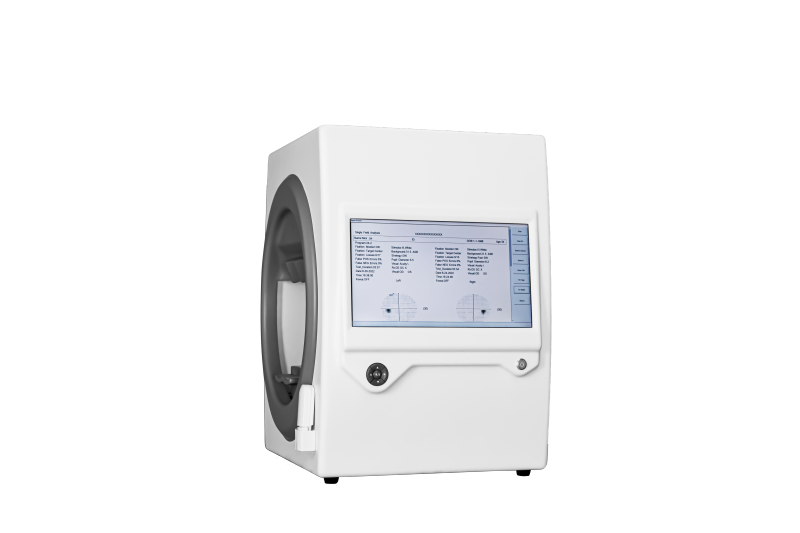

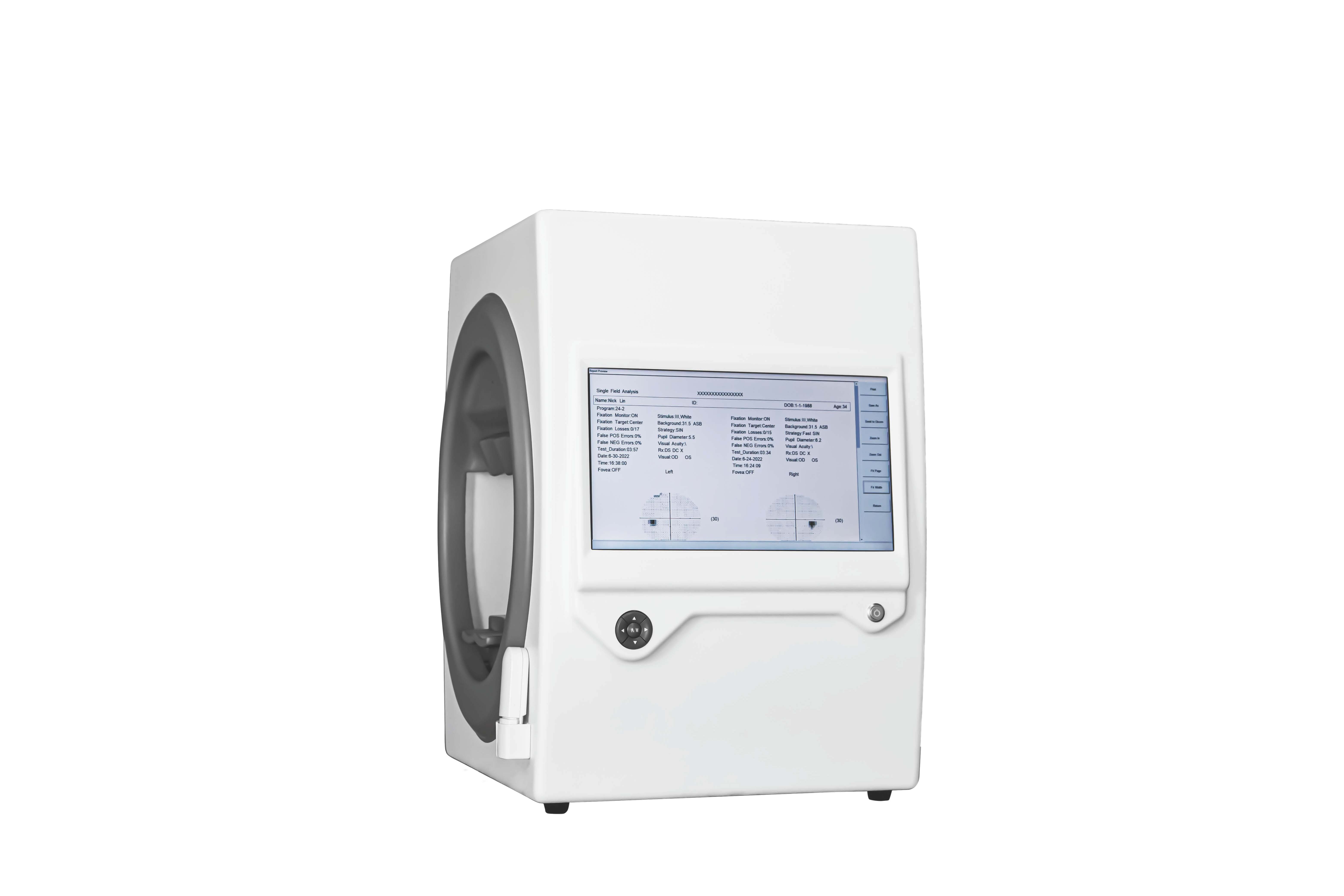

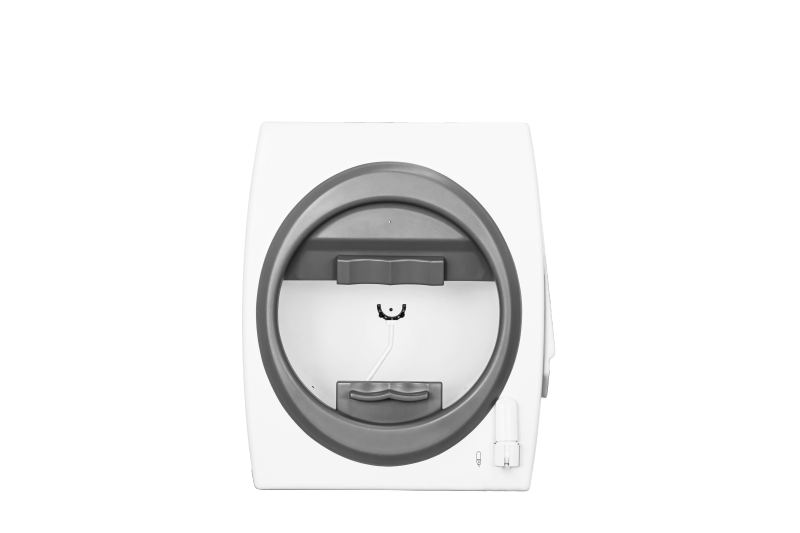

Main Projection Perimeter SVF-9000
20 Years professional experience in Perimeter Market
First Impression
Professional and Precise Perimeter with Pure Optical Controlling System
Stimulus brightness controlled through changing progressive lens position.
High-performance mechanical projection system, can project stimulus points with high precision, there are no restrictions on projection points
Standard Goldmann Perimeter with Complete Functions
Full compliance with the Goldmann standards.
Classical test with white stimulus on white background light test.
Professional test with blue stimulus on yellow background light test(SWAP).

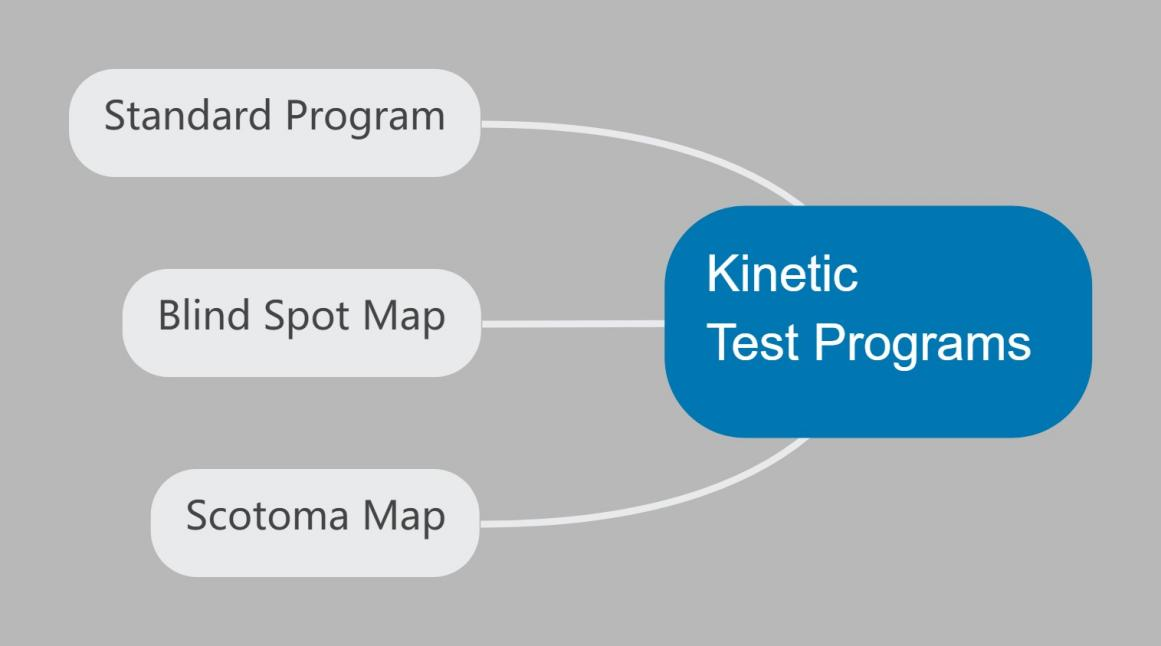

Kinetic and Static Test All-In-One. Cursor size are changeable among Goldmann Ⅰ,Ⅱ,Ⅲ,Ⅳ &Ⅴ.

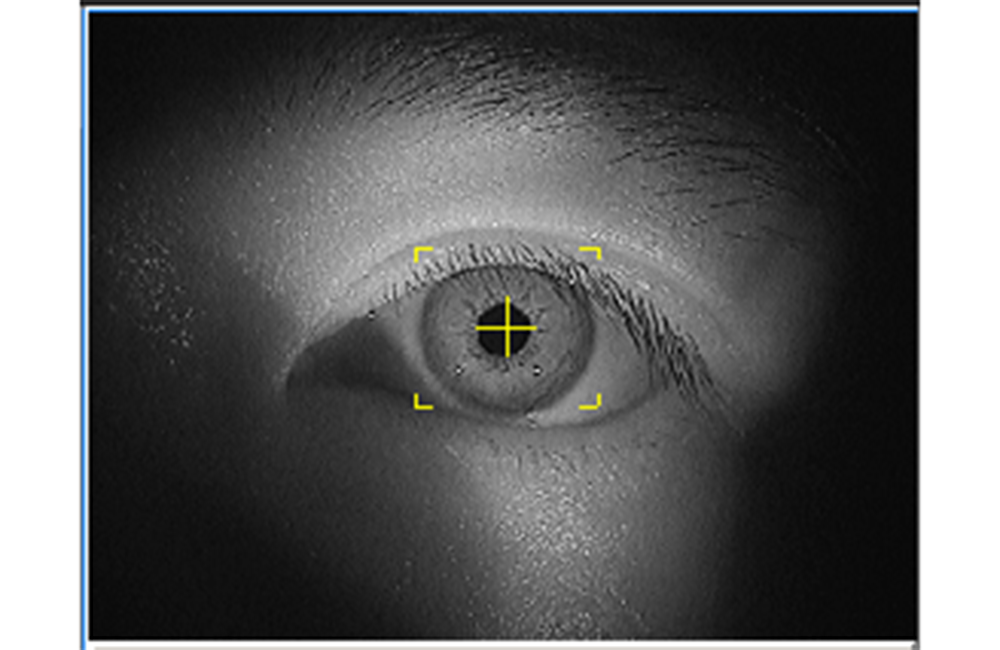

Auto Eye Recognition and Pupil Diameter Measurement
System recognize OD/OS automatically and alarm to indicate operator,which is helpful to avoid mistake during test.
Auto pupil diameter measured during test for correcting visual error.

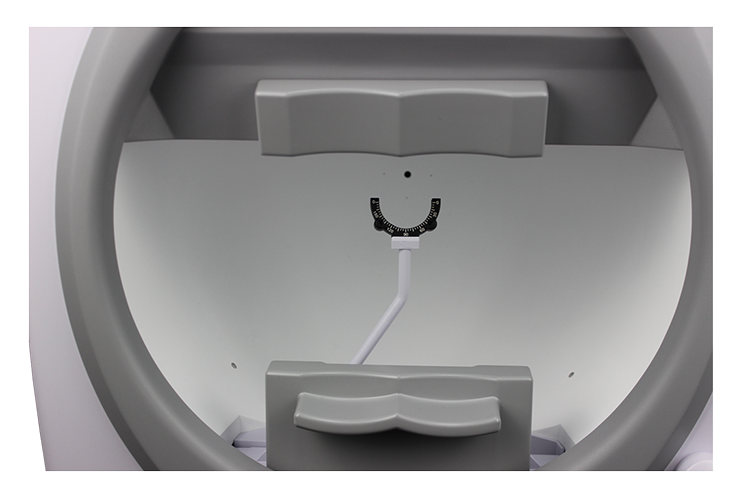

Humanized Design of Mechanical and Structure
Neat wiring and exquisite inside.
Each modules can be replaced easily.
Simplify maintenance service.
Voice Guidance
Instruct examinee how to cooperate and indicate examinee during whole test by voice guidance.
Dicom
Data operation for patient information uploading and downloading.

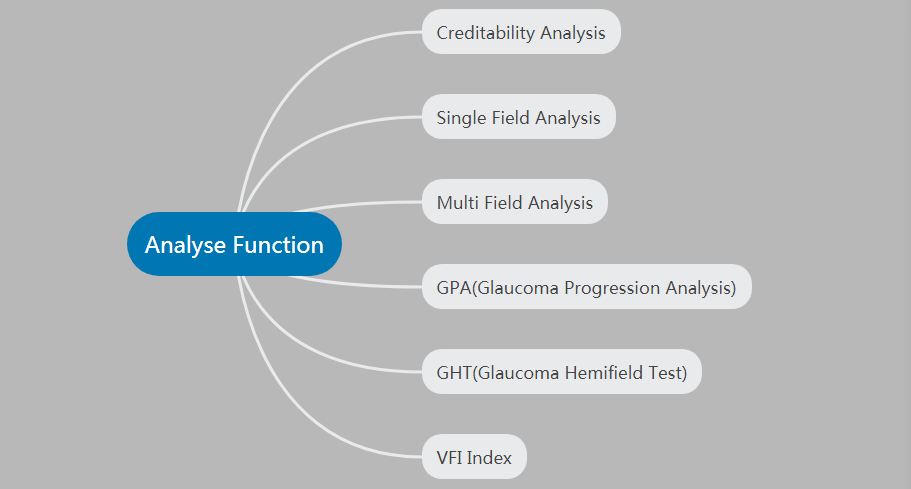

Software Representation
 |
* Full function test programs are all in default setting |
Software Representation

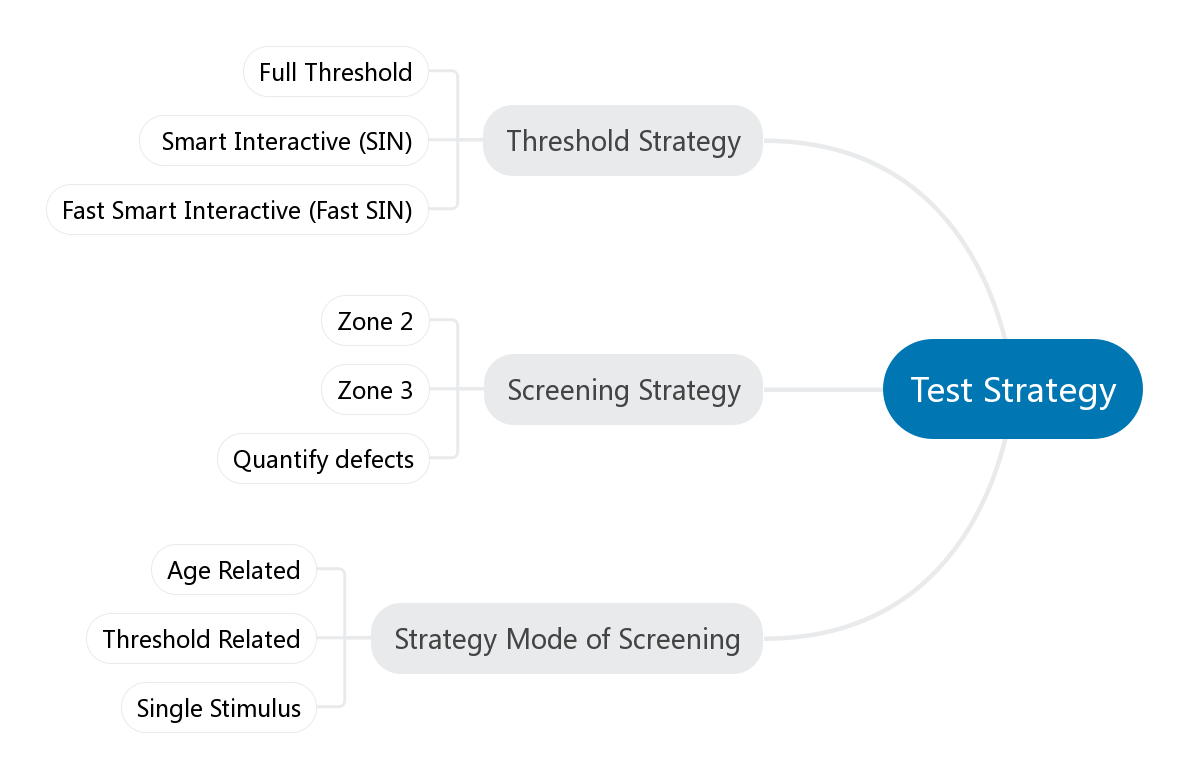

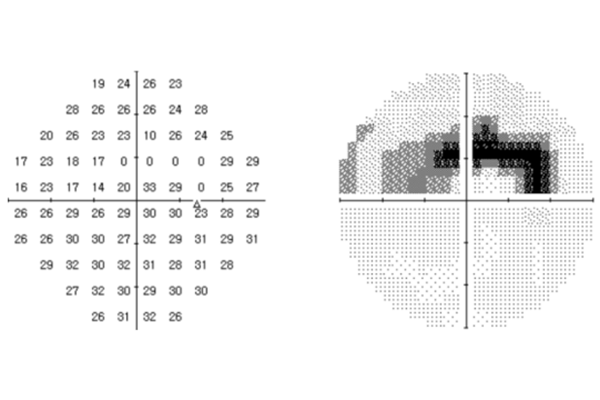

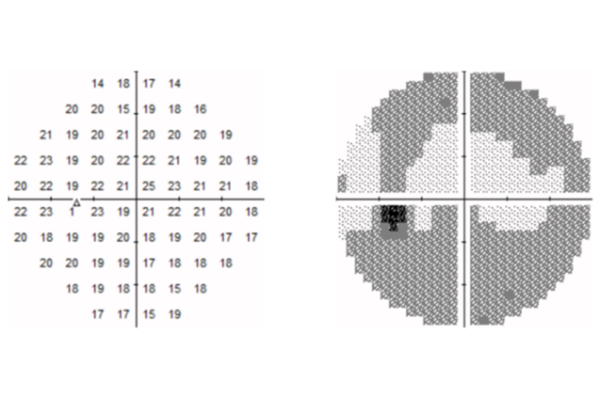

Efficient Test strategies = Reduce Test time + Accuracy
The test strategies fully consider different age groups, responsiveness, visual field defects regularity, and the distribution of the field island, provides faster solution for perimetry testing which is Smart, Intelligent and interactive.
Software Representation

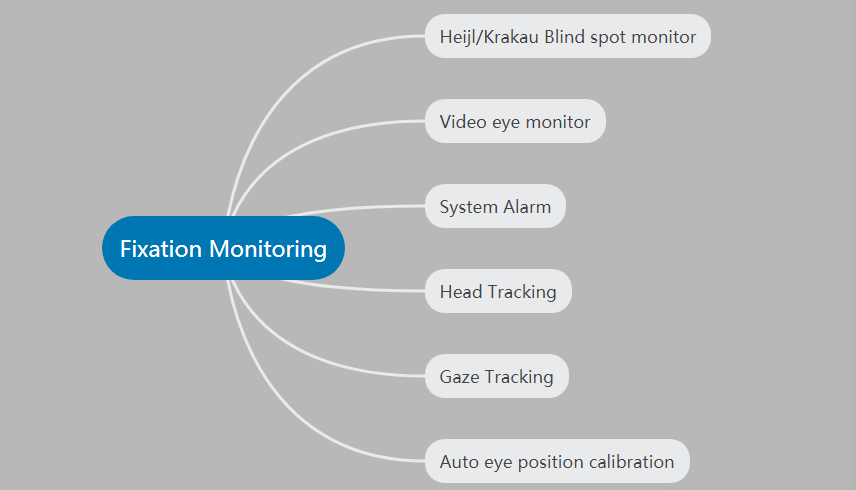

Multiple Fixation Monitoring system
Trace the reliability of test result
 |
 |
Software Representation

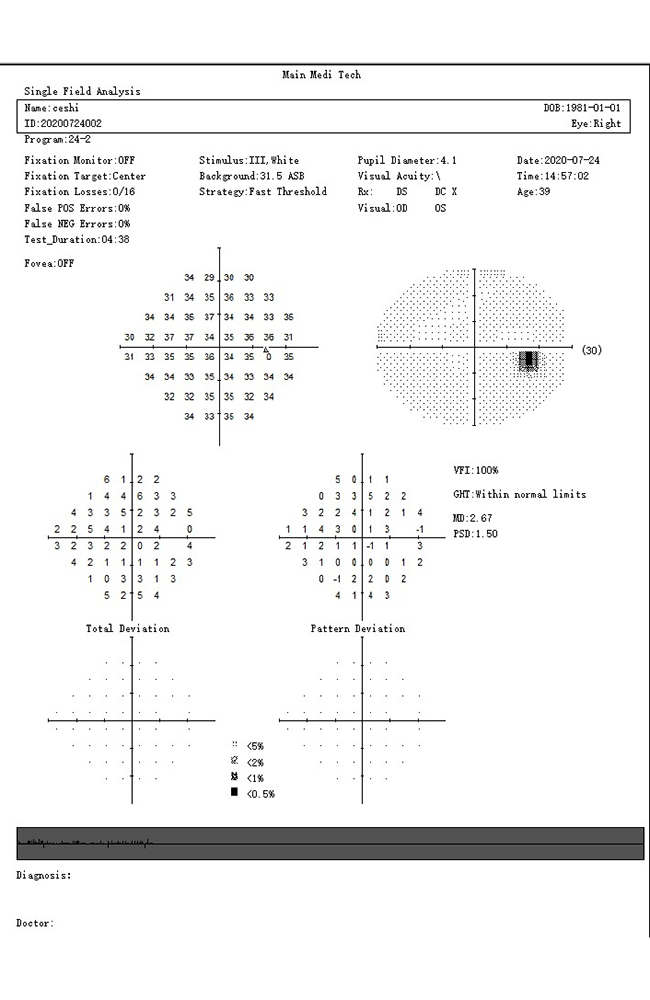

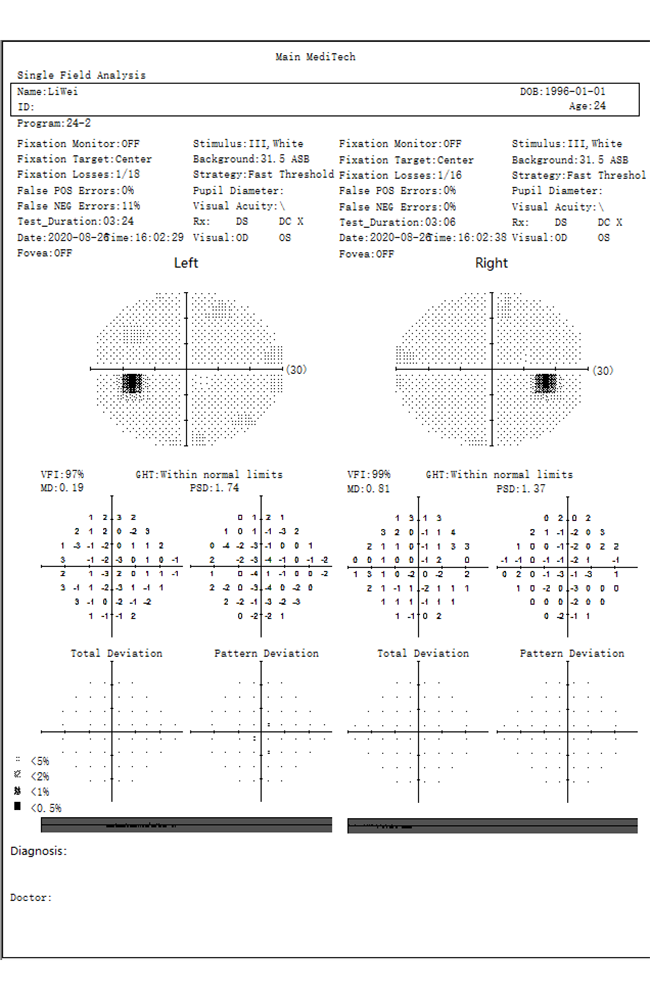

Classic Test report
Test report in Classic format, can be easily read and understand by doctors world widely.
 |
 |
| Monocular Report | Bincocular Report |
 |
 |
|
Model |
SVF-9000 Basic |
SVF-9000 Pro |
|
DB Value Range displayed |
0~51db |
|
|
Stimulus Intensity Range |
0.08asb~10000asb |
|
|
Stimulus Duration Time |
200ms/ Adaptive |
|
|
Max Measurement range |
90° |
|
|
Test Distance |
30cm |
|
|
Stimulus Plane |
Aspherical surface |
|
|
Stimulus Size |
Goldmann III |
Goldmann Ⅰ,Ⅱ,Ⅲ,Ⅳ &Ⅴ |
|
Stimulus Color |
White |
White,Blue,Red |
|
Background Illumination |
White (31.5 asb) |
White (31.5 asb) |
|
Test Mode |
Static & Kinetic |
|
|
Stimulus Source |
Halogen |
|
|
Voice Guidance function |
● |
● |
|
SWAP |
/ |
● |
|
Static Customize program |
● |
● |
|
Kinetic Customize program |
/ |
● |
|
Chinrest Control |
Touch Screen,Keyboard and mouse control,Button control |
|
|
Head Movement |
Chinrest and forehead-rest move simultaneously |
|
|
PC Configuration |
CPU:Intel® Processor N100 (6M Cache, up to 3.40 GHz); RAM:4GB; Hara Disk:120GB; |
|
|
Dimension |
480mm(L)*430mm(W)*560mm(H), 24 kgs |
|
|
Packaging |
560mm(L)*500mm(W)*700mm(H), 28 kgs |
|
|
Others |
Input Voltage: AC 100 - 240V,50 ~ 60Hz |
|
