SLIT LAMP SL-3S (TYPE C)

No.
SKU:

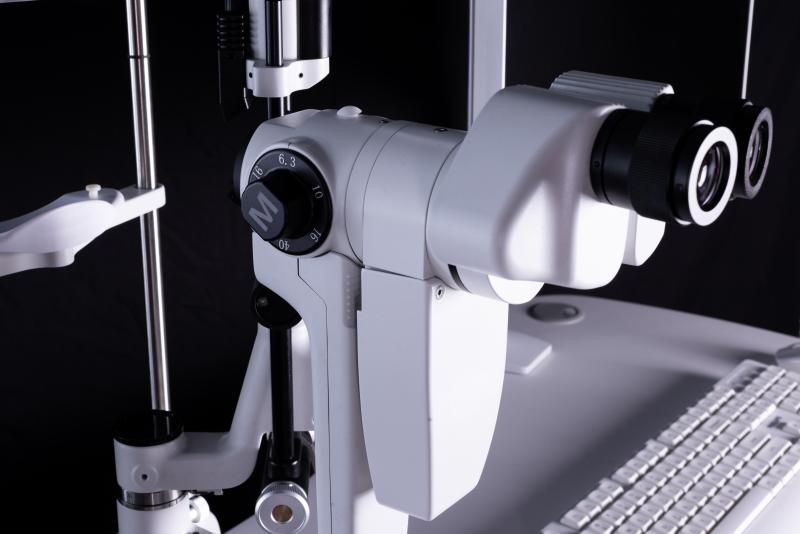

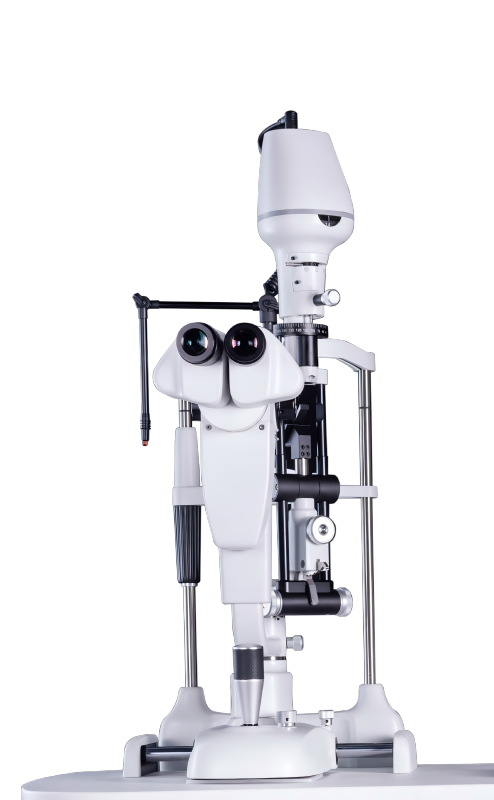

Main MediTech slit lamp SL-3S is a cutting-edge slit lamp that seamlessly integrates a medical digital collector within a sleek, professional design. This slit lamp will help capture high-quality images and videos with ease, to be your new essential tool for precision and efficiency in ophthalmic diagnosis and examinations.

Please contact our sales team.

Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • SLIT LAMP SL-3S (TYPE C)
Download
  • DESCRIPTION
  • TECHNICAL PARAMETER

Parallel type, Galilean system

Superior optic quality, provides Stereoscopic & Comfortable View

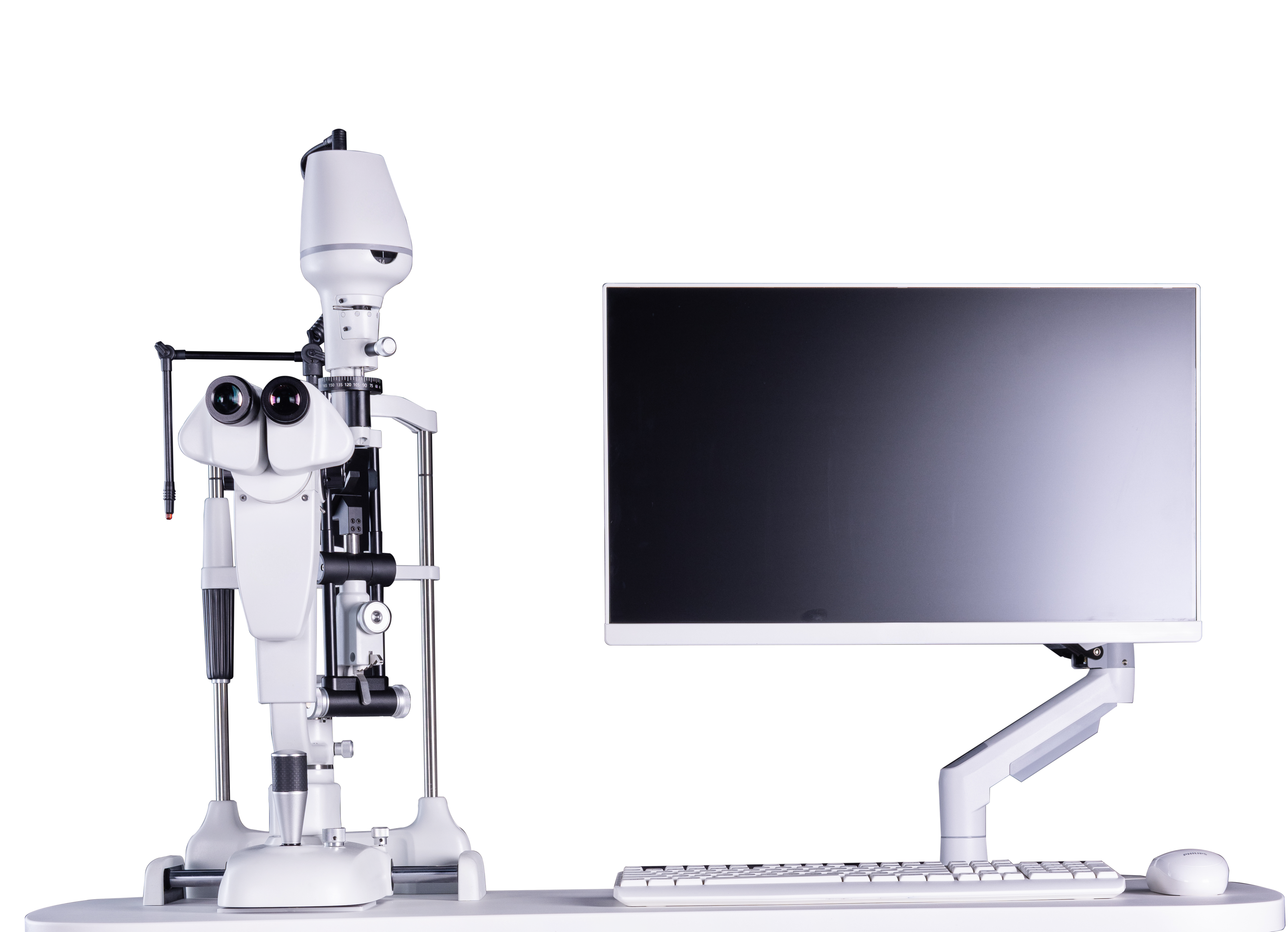

Built-in medical digital collector, integrated design, simple, professional,neat and exquisite appearance

Warm LED Illumination, Better Conformity, Longer Life Time for 50 thousand hours,and suitable for human tissue.

Professional & Multi-functional Software With Simple Humanized Interface for Easy Operate

  • Both of image capturing function and video capturingfunction configured
  • Patient Information Records and Management
  • Image Comparison, Export, Import, Edit
  • Report printing, Report save as PDF & Export



Coaxial background light configured for diverse clinical operation needs

OD/OS auto recognition

Auto recognition of magnication for captured images and reveal under each image

Shooting button on the joystick,One-handed operation to focusing, brightness adjusting and taking pictures

Precision Machining Makes the Smooth and Flexible Movement

DICOM 3.0 Available

Meibomian glands photography(optional)

Technical Parameter
Model
Items
SL-3S Type C
Optical Part
Microscope Type Galilean Type System
Magnification Changer Revolving Drum
Magnification 6X,10X,16X,25X,40X
Eyepiece Magnification 12.5x
Visual Angle of Eyepiece 13°
PD Range 52mm-85mm
Diopter ±7D
Visual Field Diameter 6X(33mm), 10X(22mm),16X(14mm), 25X(8.5mm), 40X(5.5mm)

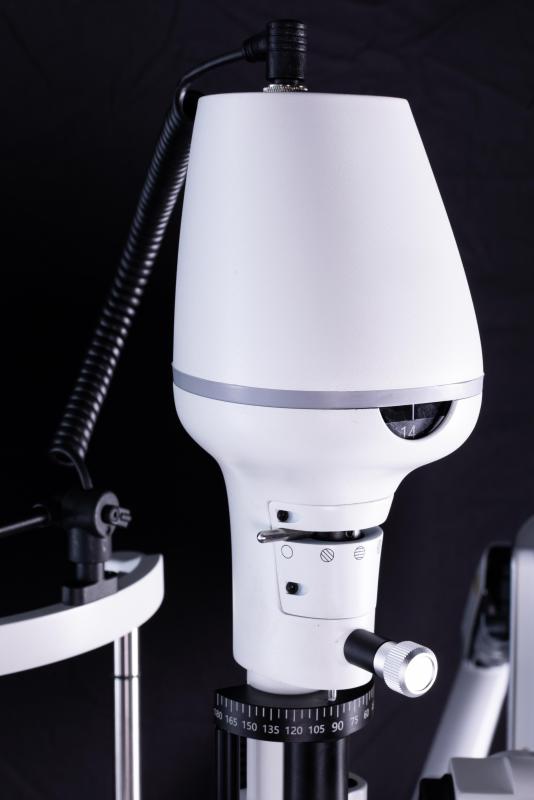

Illumination Part
Illumination Type Tower Type
Light Source Warm LED
Brightless control Continuously adjustable
Illumination tilting 5°,10°,15°,20°
Slit Width 0mm-14mm continuously adjustable
Slit Height 1mm-14mm continuously adjustable
Slit Angle 0°~180°continuously adjustable
Slit Aperture Size Φ0.2Φ1Φ3Φ5Φ10Φ14mm)
Filter Heat Aborption, Grey, Redfree(Green), Cobalt Blue
Imaging system
Image collector Medical Grade CCD, 12 Mega Pixel
Eyepiece Splitting Ratio 50%
Camera Splitting Ratio 50%
Coaxial Background illumination Configured
Yellow filter Optional
DICOM Connectable Yes
* Voltage: 100~240V 48~62Hz Compatible
